Callisto : The Ancient Cratered World – A Relic of the Early Jovian System

Callisto, the outermost of Jupiter’s four large Galilean satellites, stands as a unique and scientifically pivotal object in the solar system. Often described as the “dead” or “unremarkable” Galilean moon, its relative lack of geological activity is precisely what makes it a crucial relic. It is a world that has largely preserved the record of the intense bombardment and conditions present in the early Jovian sub-nebula approximately four billion years ago, offering critical constraints on the formation and evolution of the entire Jupiter system.

I. Geophysical and Bulk Compositional Profile

Callisto is the third-largest moon in the solar system, with a diameter of approximately 4,821 km making it nearly the size of the planet Mercury.

A. Density and Differentiation

Callisto possesses the lowest bulk density among the Galilean satellites, at approximately 1.83 g/cm³. This low density indicates a bulk composition of roughly equal parts water ice and silicate rock . This composition contrasts sharply with the density gradient observed across the Galilean moons: Io (rocky), Europa (ice/rock), Ganymede (ice/rock), and Callisto (ice/rock), suggesting a progressive decrease in volatile content with increasing distance from Jupiter.

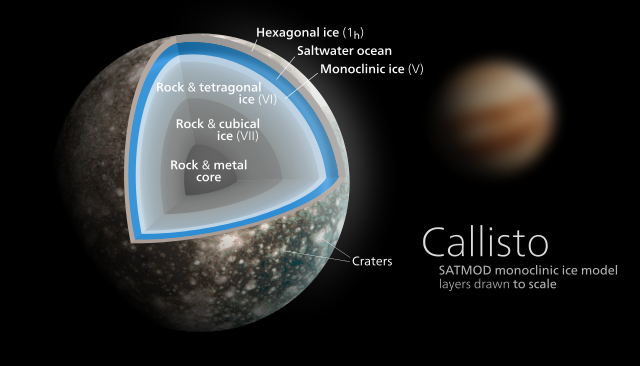

Gravitational data acquired by the Galileo spacecraft initially suggested a partially differentiated or non-differentiated interior structure. While the inner moons (Io, Europa, Ganymede) show clear layering into a rocky core, a mantle, and an icy crust, Callisto’s interior appears to be less distinct, potentially resembling a “raisin pudding” of rock and ice that did not fully separate into distinct layers . This is attributed to a slow accretion process and a lack of significant tidal heating, which would have been necessary to drive rapid, complete differentiation

B. The Subsurface Ocean Hypothesis

Despite its seemingly quiescent exterior, one of the most significant discoveries regarding Callisto is the strong inference of a subsurface ocean of liquid, salty water.

• Evidence from Magnetic Induction: The primary evidence comes from the Galileo magnetometer measurements. Callisto’s orbit subjects it to Jupiter’s intensely strong and time-varying magnetic field. If a highly conductive layer (such as a salty liquid ocean) exists beneath the non-conductive ice crust, it will generate an induced secondary magnetic field in opposition to the planetary field.
• Modeling and Ambiguity: Early interpretations were complicated by Callisto’s dense ionosphere, a highly conductive layer in its thin atmosphere, which can mimic the induction signal of an ocean . However, recent re-analyses of the Galileo data, particularly by applying advanced models that simultaneously fit multiple flyby observations and account for the ionosphere, have strongly favored a scenario where the induced magnetic field is caused by a combination of a thick conductive ocean and the ionosphere, rather than the ionosphere alone .
• Ocean Characteristics: Current models suggest the ocean is likely tens of kilometers thick, located beneath an ice shell that may be anywhere from 100 to 250 km deep . The source of heat to maintain this ocean is generally attributed to radiogenic decay within the silicate rock, as Callisto’s distant orbit and lack of orbital resonance preclude significant tidal heating .

II. Surface Geology and Age Determination

The defining characteristic of Callisto is its hyper-cratered surface, a geological testament to its long-term stability and inactivity.

A. The Heavily Cratered Terrain

Callisto has the oldest and most heavily cratered surface of any body in the solar system, with an estimated age of approximately 4 billion years . The high density of impact craters, ranging from small bowls to massive basin structures, indicates that there has been little to no global geological resurfacing, such as tectonism or cryovolcanism, since the period of heavy bombardment .

• Multi-Ring Basins: The most prominent features are the colossal multi-ring structures, formed by massive impacts. The largest known example is the Valhalla Basin, a feature over 3,000 km in diameter, characterized by a central bright region surrounded by concentric rings extending outwards.
• Catenae: Another distinct feature is the presence of catenae—chains of impact craters—such as the Gipul Catena . These are interpreted as the result of tidally-disrupted comets that broke into fragments before striking the moon, analogous to the impacts of Comet Shoemaker-Levy 9 on Jupiter itself.

B. Surface Composition and Degradation

Spectroscopic analysis reveals the surface is a mixture of water ice and dark, non-ice material .

• Icy and Dark Components: The bright areas are rich in water ice, while the darker material is composed of hydrated minerals, silicates (similar to carbonaceous chondrites), carbon dioxide ( CO₂), and organic compounds.
• Sublimation Degradation: The relative deficit of small impact craters is attributed to the slow, long-term process of sublimation-driven degradation. Over vast timescales, the volatile ice component sublimates (turns directly to gas), causing the microscopic erosion and flattening of small landforms and leaving behind a lag deposit of the non-volatile dark material.

III. Astro-biological Context and Future Exploration

Callisto’s status as a possible ocean world, despite its geological inertness, places it on the list of targets for astrobiological interest.

• Potential for Life: The ingredients for life—liquid water, essential elements (carbon, oxygen, etc.), and a source of energy (radiogenic heat)—are potentially present . However, the lack of tidal heating suggests a lower thermal energy budget compared to Europa and a greater isolation from the rocky mantle, which might limit the chemical cycling necessary for robust biological processes. Callisto is often considered a less-favorable, but still viable, candidate for astrobiology among the icy moons.
• Comparative Planetology: Callisto serves as the crucial end-member for understanding the evolution of the Galilean satellites. Its lack of orbital resonance with the inner three moons (Io, Europa, Ganymede) and its correspondingly low level of tidal heating provide a baseline against which the intense geological activity of its neighbors can be evaluated. Its primordial surface is a frozen snapshot of the early solar system’s impact environment.
• Future Missions: The status of Callisto’s ocean is a high-priority goal for upcoming missions. The European Space Agency’s JUICE (JUpiter ICy moons Explorer) mission, which launched in 2023, is scheduled to perform multiple flybys of Callisto before entering orbit around Ganymede, and NASA’s Europa Clipper will also take new measurements, aiming to definitively confirm the existence and characteristics of the subsurface ocean .

Conclusion

Callisto is a paradox: a geologically ancient, heavily bombarded world that may conceal a massive, relatively deep subsurface ocean. It is the archetype of geological quiescence and a pristine record of the early solar system, a monument to four billion years of impacts. The ongoing analysis of Galileo data, and the forthcoming investigations by JUICE and Europa Clipper, are poised to transform our understanding of this outer moon, potentially confirming it as an ocean world and redefining its role in the search for extraterrestrial habitability.
